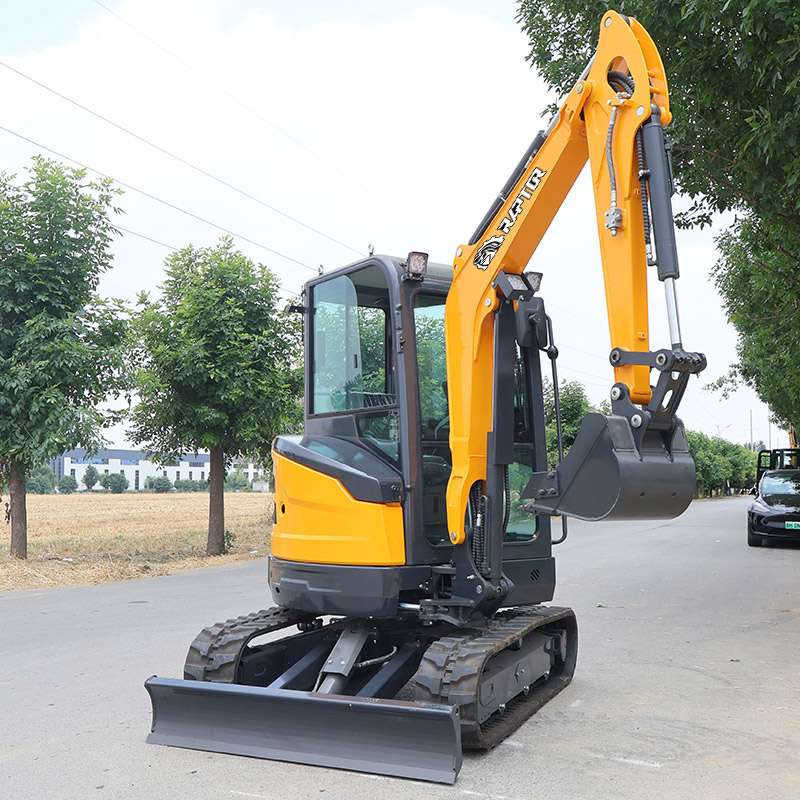

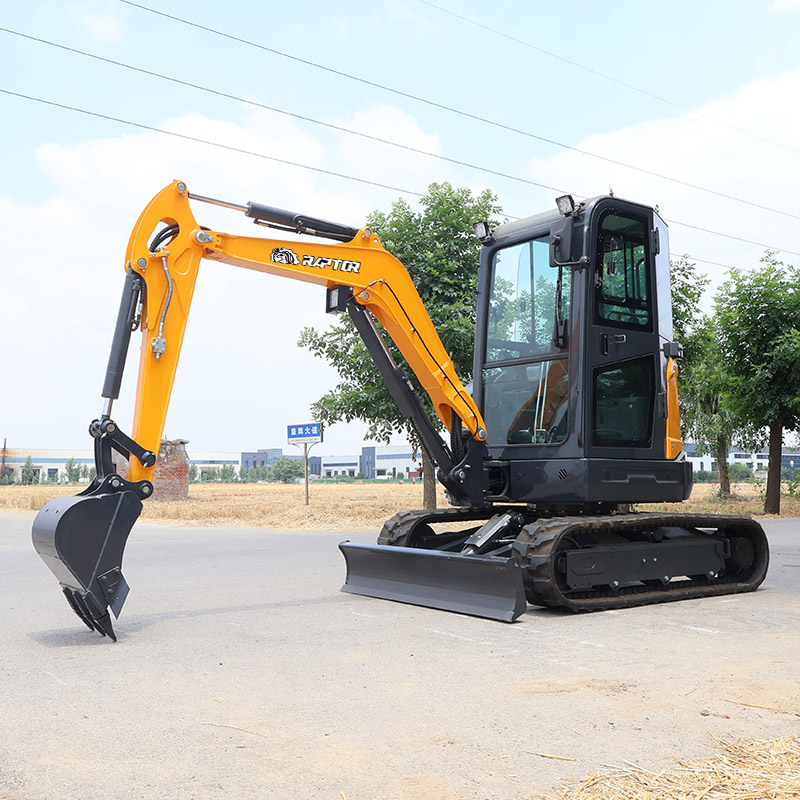

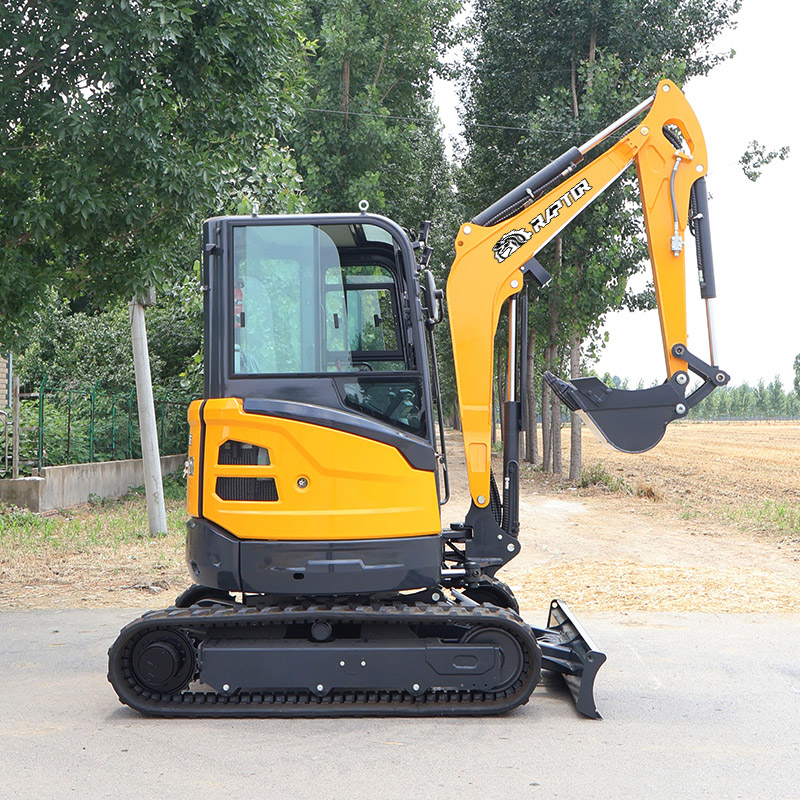

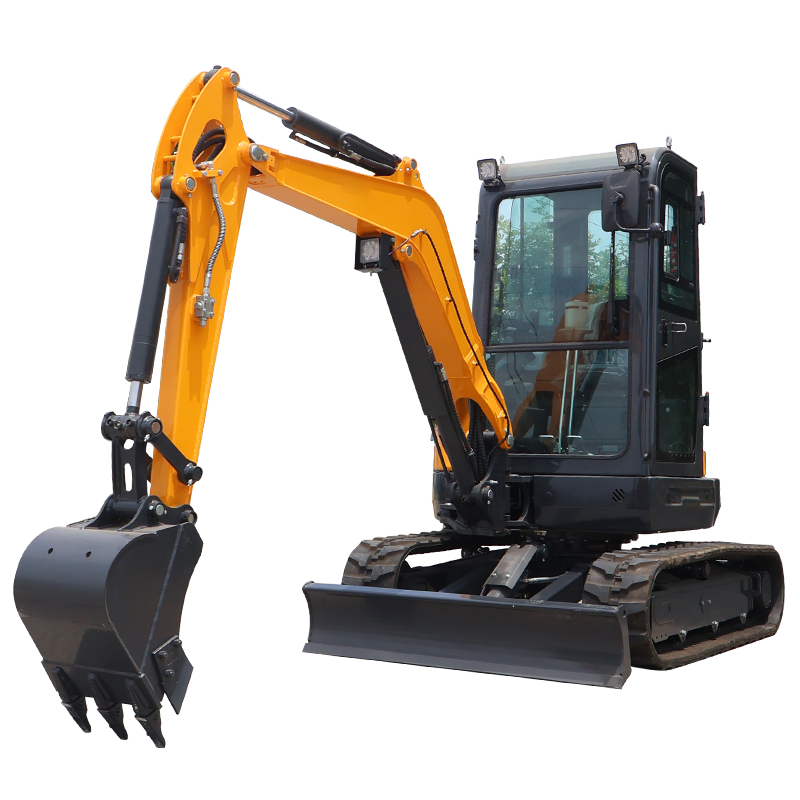

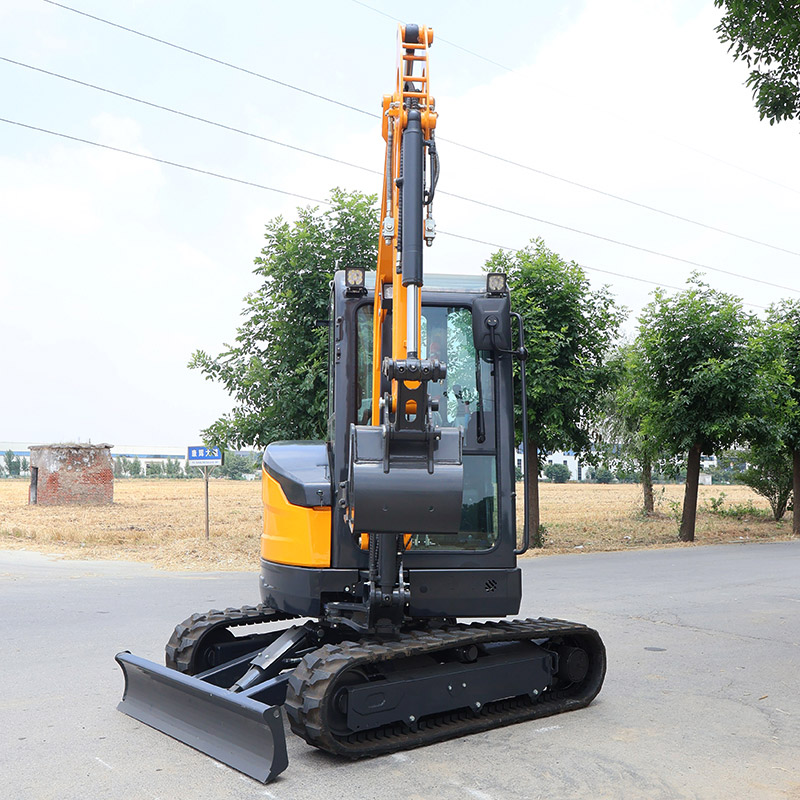

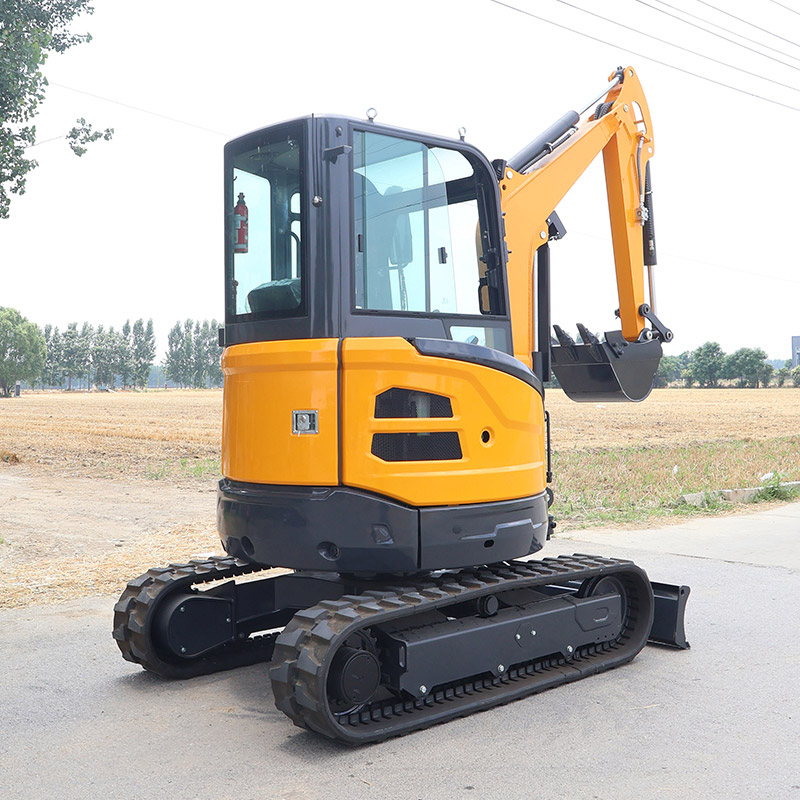

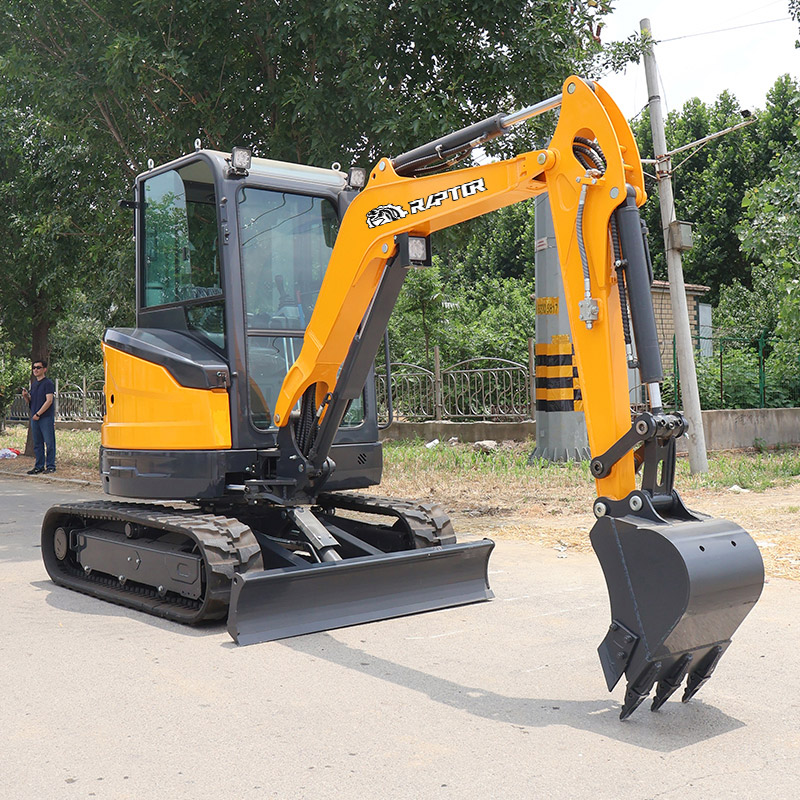

RT30 Mini Excavator

Premium Japanese Power: Driven by Yanmar 3TNV80F / Kubota D1105 (14.6kW) engines (EPA/Euro V ready).
Intelligent Digital Cockpit: High-definition 7-inch smart touchscreen for advanced diagnostics and intuitive interaction.
Compact Professional Agility: True Zero-Tail Swing & Independent Boom Swing for surgical precision in tight job sites.
Extreme Comfort: Optional Enclosed Luxury Cabin with A/C and ergonomic panorama view seating.
Built Tough: High-strength cast steel swing bracket and smart internal hose routing for maximum durability.

Contact Now E-Mail Telephone WhatsApp

Product Details

The RT30 mini excavator has an operating weight of 2800kg (6173 lbs), delivering powerful output and outstanding overall performance. It comes with zero-tail swing and side-swing boom functions for ultra-flexible operation. Optional wide buckets and narrow buckets of various sizes are available. Compatible attachments include hydraulic quick hitch, mechanical quick coupler, thumb clamp, hydraulic breaker, auger drill and more, realizing multi-purpose operation with one single machine.

Three Core Technical Advantages

1. Powerful Performance & High Efficiency

Equipped with Japan Yanmar 3TNV80F diesel engine, compliant with Euro V, North America EPA Tier 4 and China National IV emission standards, energy-saving, eco-friendly and high power output.
Load-sensing hydraulic system with fast response, high efficiency and superior controllability.
Travel motor with automatic speed adjustment to boost traveling efficiency on rough ground and slopes.

2. Compact Body, Full Multi-functionality

Zero tail swing design enables safe operation in narrow spaces; side-swing boom eliminates dead corners when working along walls and foundations.
Standard primary auxiliary hydraulic circuit, optional secondary auxiliary circuit to support all types of working attachments.
Customizable wide/narrow digging buckets for grading, trenching and precision digging jobs.

3. Intelligent & Comfortable Operation

7-inch intelligent touch screen with integrated abundant functions for smarter human-machine interaction and upgraded operation experience.
Ergonomically positioned instrument panel for effortless, comfortable daily operation.
Cab version available with spacious interior, wide panoramic view and reasonably arranged control levers for fatigue-free long-hour work.

Full Dual Metric & Imperial Technical Specification Table

Item	Metric Specifications	Imperial Specifications
Operating Weight	2800 kg	6173 lbs
Rated Power / Speed	14.6 kW @ 2400 rpm	19.6 HP @ 2400 rpm
Standard Bucket Capacity	0.065 m³	0.085 cu.yd
Engine Model	Yanmar 3TNV80F	Yanmar 3TNV80F
Emission Standard	National IV / Euro V / EPA Tier 4	National IV / Euro V / EPA Tier 4
Displacement	1.267 L	77.3 cu.in
Rated Hydraulic Flow	95 L/min	25.09 gal/min
Swing Speed	10 r/min	10 rpm
Bucket Digging Force	24 kN	5395 lbf
Arm Digging Force	14.8 kN	3327 lbf
Ground Pressure	27.3 kPa	3.96 psi
Travel Speed	2.3 / 4.0 km/h	1.43 / 2.49 mph
Gradeability	58% (30°)	30°
Overall Length	4200 mm	165.35 in
Overall Width	1550 mm	61.02 in
Overall Height (Cab Top)	2480 mm	97.64 in
Minimum Ground Clearance	300 mm	11.81 in
Track Gauge	1250 mm	49.21 in
Track Width	1550 mm	61.02 in
Max Digging Height	4390 mm	172.83 in
Max Dumping Height	3060 mm	120.47 in
Max Digging Depth	2800 mm	110.24 in
Max Digging Radius	4800 mm	188.98 in

Product Overview

The RT30 zero-tail compact mini excavator is a 2.8-ton heavy-duty crawler digger engineered for commercial landscaping, farm renovation, municipal works and tight-site construction projects. Powered by genuine Japanese Yanmar 3TNV80F liquid-cooled diesel engine, it meets strict global emission standards, removing extra certification costs for exports to Europe, North America and Southeast Asia.

Its signature zero-tail swing body avoids wall collision when working close to buildings, while the side-swing boom expands lateral working range without frequent machine repositioning — ideal for wall-side trenching, fence post drilling and backyard remodeling. The load-sensing high-flow hydraulic system delivers fast, responsive digging power, paired with auto-shift travel motors to maximize mobility on muddy, uneven terrain.

Dual auxiliary hydraulic circuits come as standard, supporting a full lineup of interchangeable attachments including hydraulic breakers, auger drills, thumb grabs and grading buckets. Customers can select wide buckets for bulk earthmoving or narrow buckets for precision trenching to match different project demands.

Two cab options are available: spacious full cab with panoramic wide-view windows or lightweight safety canopy. A 7-inch intelligent touchscreen monitor centralizes machine data, fault alerts and attachment control settings, delivering an intuitive, modern operating experience. Low 27.3kPa ground pressure rubber tracks protect lawns and pavement from heavy indentation during landscaping jobs.

Combining strong Yanmar power, flexible zero-tail side-swing design and full multi-attachment compatibility, the RT30 is a reliable workhorse for professional contractors, equipment rental fleets and large farm operations worldwide.

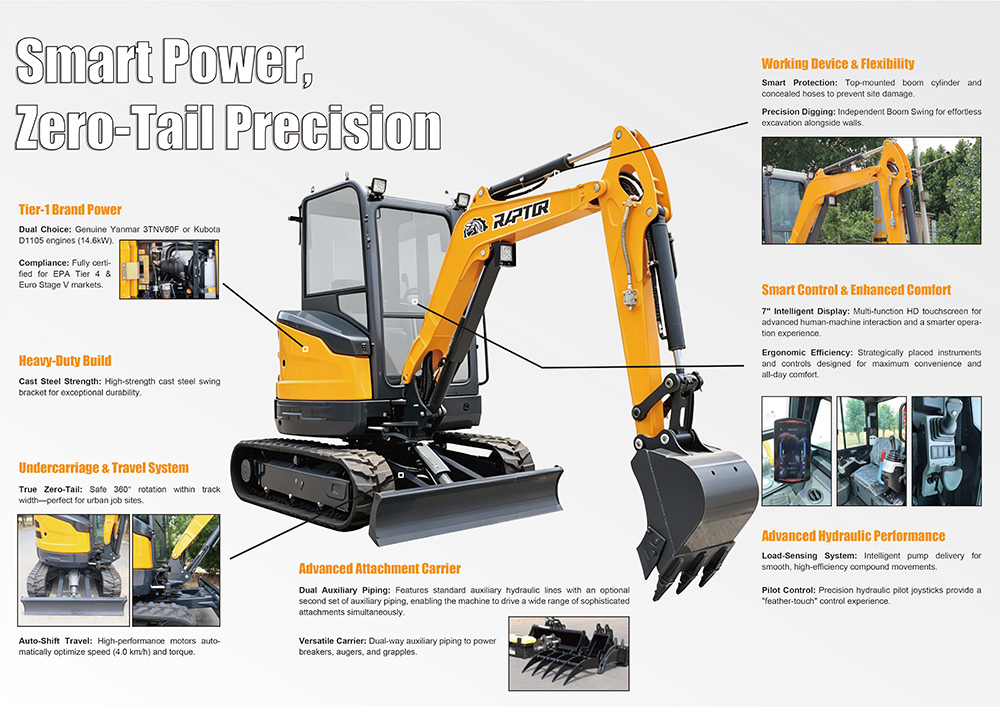

RT30 Mini Excavator

Application Scenarios

Commercial & Residential Landscaping: Large-area soil grading, tree planting hole drilling, fence post installation, lawn renovation
Municipal Small Engineering: Sidewalk repair, drainage pipeline trenching, roadside green belt construction
Orchard & Farm Maintenance: Irrigation ditch digging, barn renovation, waste clearance, fertilizer pit excavation
Confined-Site Renovation: Backyard remodeling, small concrete demolition, basement debris removal
Forestry Light Construction: Small stump grinding, access road repair, brush clearing
